Undercutters / Bed Lifters

Manufacturer Part Number:

Tilmor Part Number:

by Thiessen Tillage Equipment

Starting at: $874.00 - $2,888.00

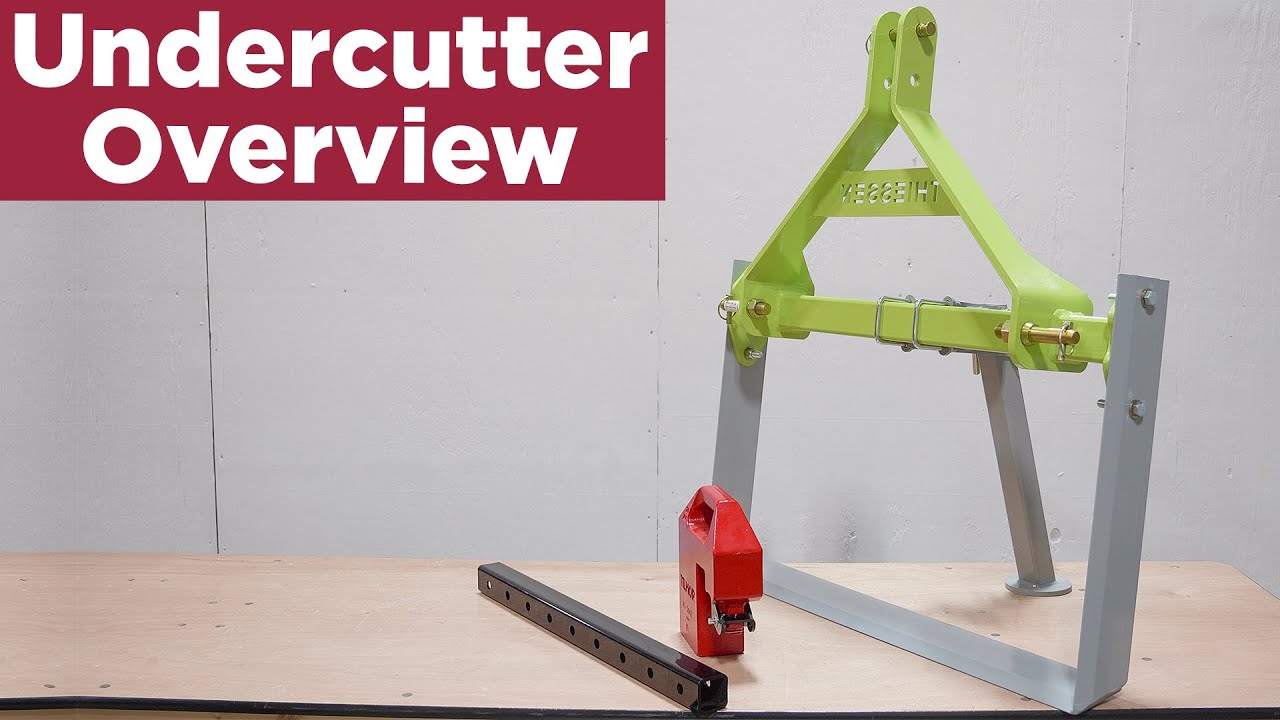

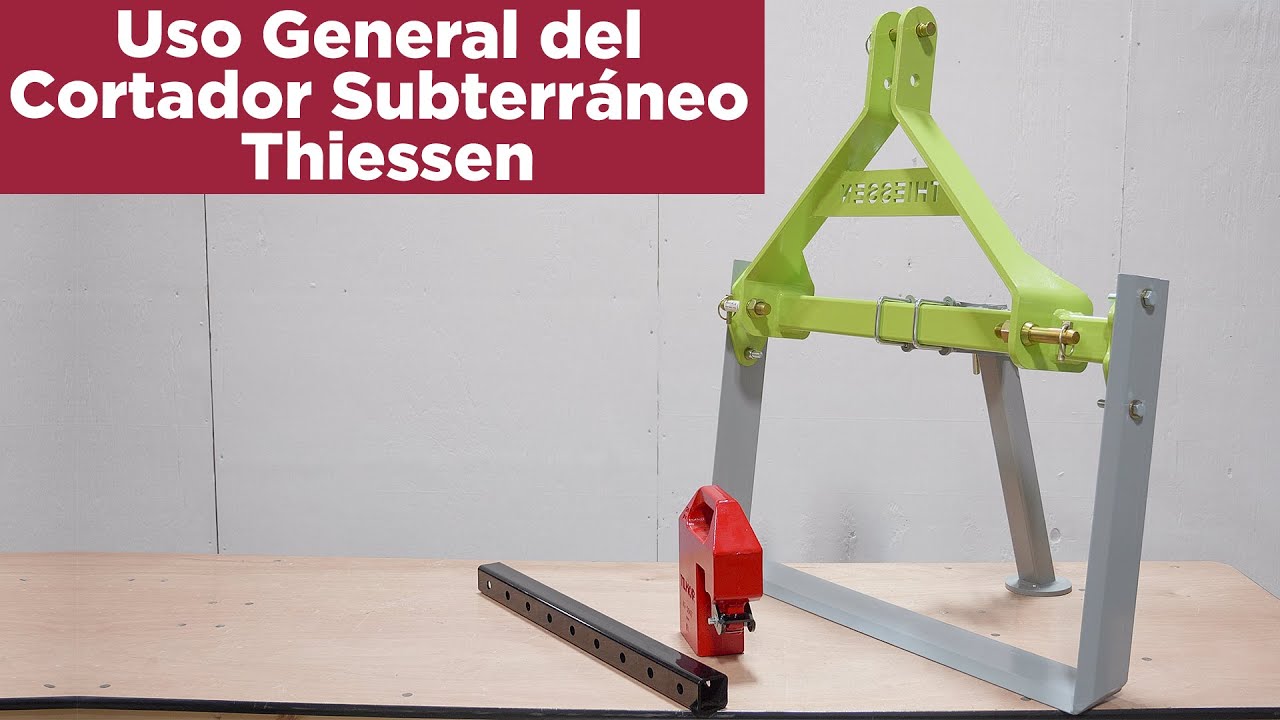

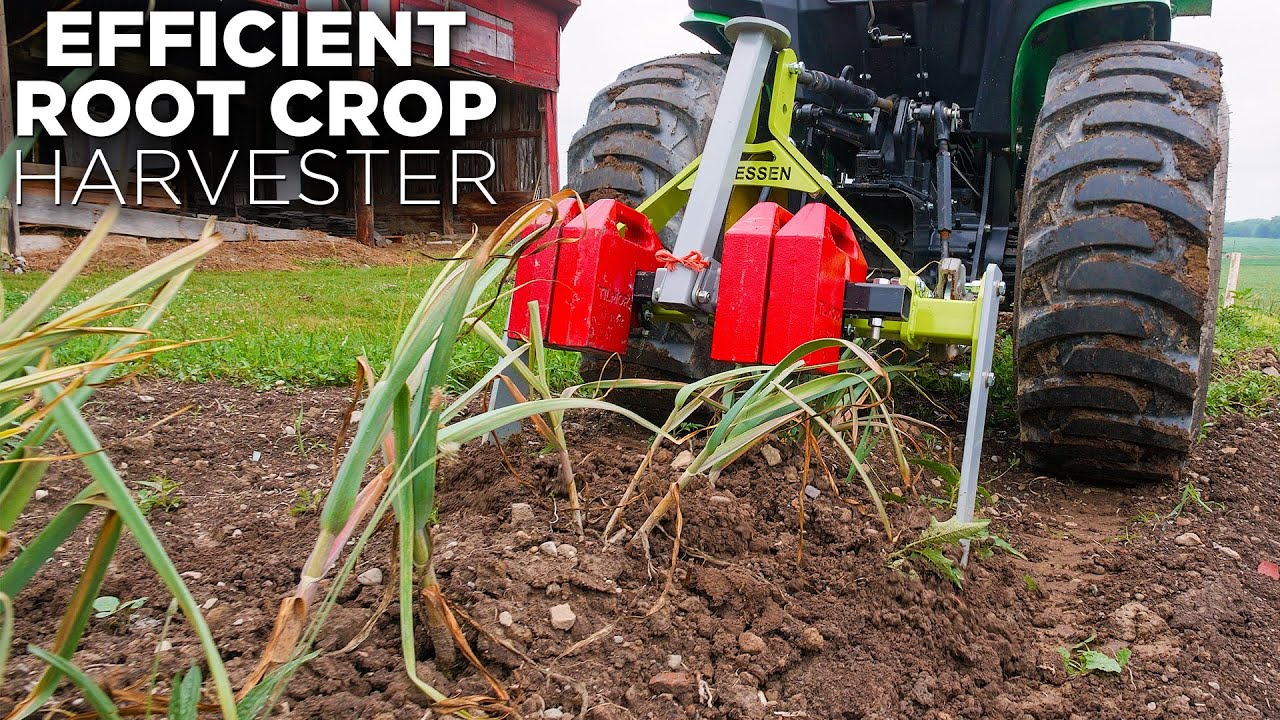

The Thiessen Undercutter loosens your soil with a robust 1060 High Carbon Steel cutting edge for easy harvest of carrots, garlic, parsnips and other root crops.

Recommended Tractors for Undercutters Chart

Recommended sizing: the undercutter should be at least 10-12 inches wider than the distance between your two outer rows. For example, if you have 3 rows 15 inches apart, that would be a 30 inch distance between the outside rows and a 42 inch undercutter would be ideal.

Cutting Width

Undercutter 35" Thiessen

View Recommended Tractors for Undercutters Chart

  • Recommended for tractors up to 35PTO horsepower at 12" digging depth
  • 1/2x4" bevelled cutting edge
  • Category I mounting
  • Support Leg NOT Included

42" Undercutter - Thiessen

View Recommended Tractors for Undercutters Chart

  • Recommended for tractors up to 40PTO horsepower at 14" digging depth
  • 1/2x4" bevelled cutting edge
  • Category I and II mounting
  • Included support leg with weight bracket for a 2" square tube
  • Add up to 350 lbs for additional down pressure

48" Heavy Duty Undercutter - Thiessen

View Recommended Tractors for Undercutters Chart

  • Recommended for tractors up to 60PTO horsepower at 16" digging depth
  • 3/4x6" beveled cutting edge
  • Category I and II mounting
  • Included support leg with weight bracket for a 2" square tube
  • Add up to 500 lbs for additional down pressure

60" Undercutter

View Recommended Tractors for Undercutters Chart

  • Recommended for tractors up to 75PTO horsepower at 16" digging depth
  • 3/4x8" beveled cutting edge
  • Category I and II mounting
  • Included support leg with weight bracket for a 2" square tube
  • Add up to 500 lbs for additional down pressure

Support Leg

Support Leg and Weight Bracket

This Undercutter Support Leg can be added for easy storage. It also acts as a weight bracket accepting any weights that are attachable to a 2" square tube.

Modbars and Suitcase Weights can be purchased separately to be attached.
NOTE: Undercutter support leg is now included with all 42" and 48" undercutters

Weight Kit

Includes four weights (44lb/20kg each) and 24" Modbar.

NOTE: 35" Undercutter must have the support leg to add the weight kit.

Includes six weights (44lb/20kg each) and 24" Modbar.

NOTE: 35" Undercutter must have the support leg to add the weight kit.

Price:

Est. ship date: Oct 11, 2023

Ships in 2-3 business days

This product, or its configuration, is out of stock. Call for Availability.

This product or its configuration is coming soon.

Call for availability

Qty


Chart for Undercutter Selection based on Tractor size
Name Undercutter 35" Undercutter 42" Undercutter 48" 60 Inch None Undercutter Weight Kit - 185lbs Undercutter Weight Kit - 275lbs
Image Undercutter 35" Thiessen 42" Undercutter - Thiessen 48" Heavy Duty Undercutter - Thiessen 60" Undercutter
Tilmor Part Number KIT-1013 PA-9021 PA-9022 PA-9174 N/A KIT-1067 KIT-1076
Manufacturer Part Number UC-890 UC-1050 UC-1200 UC-1500 N/A N/A N/A
Weight 101.5 lbs. 205.0000 lbs. 257.0000 lbs. 385.0000 lbs. 0 lbs. 53.85 lbs. 53.85 lbs.
