14 1/2" S-tine Shank
14 1/2" S-tine Shank

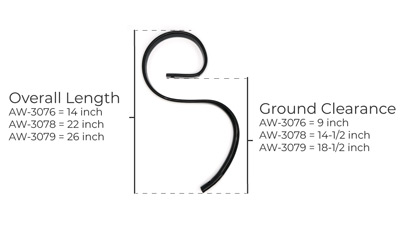

S-tine Dimensions
Guarantee

Similar Products

S-Tines

Manufacturer Part Number:

Price: $6.95 - $33.00


The vibrating action of S-tines create soil disturbance that mixes the top layer well, making it a great tool for eliminating weeds and incorporating soil amendments. The coiled spring alleviates shock when encountering obstacles and helps to extend the life of the toolbar and sweeps.

Shank Size

14 1/2" S-tine Shank

Height - 9"
Width - 1"
Thickness - .31"

14 1/2" S-tine Shank

Height - 14-1/4"
Width - 1-1/4"
Thickness - 1/2"

14 1/2" S-tine Shank

Height - 18-1/2"
Width - 1-1/4"
Thickness - 1/2"

Clamp

No clamps are included with vegetable knives, so you must provide your own or select from the options made for Tilmor toolbars. Tilmor clamps are built for 2” square toolbars.

2" Clamp for Tine Shanks

Used to mount 9" S-tines to a 1.5" square tube.
Does NOT fit 2" Toolbars!

Clamp

No clamps are included with vegetable knives, so you must provide your own or select from the options made for Tilmor toolbars. Tilmor clamps are built for 2” square toolbars.

2" Clamp for Tine Shanks

Used to mount Flex tines and S-tines to a 2" square tube.

Clamp

No clamps are included with vegetable knives, so you must provide your own or select from the options made for Tilmor toolbars. Tilmor clamps are built for 2” square toolbars.

2" Clamp for Tine Shanks

Used to mount Flex tines and S-tines to a 2" square tube.

Mounting Hardware

No Mounting Hardware is included to mount shovels/sweeps to S-tine shanks. If this option is selected, you must provide the necessary hardware.

Bolt Pack for S-tine Qty. 6

Each bolt pack contains 6 (six) bolts and nuts. The number of bolt packs added to the order will be determined by how many S-tines/Sweeps are purchased and be reflected in the shopping cart.

Price: $ USD

On backorder

Est. ship date: Oct 16, 2019

Ships in 1-2 business days

This product, or its configuration, is not currently in stock.

This product or its configuration is coming soon.

Call for availability

Qty

Name None Bolt Pack for S-Tine/Sweeps 9" S-Tine Shank, S-Tine 14-1/2 Shank, S-Tine 18-1/2
Image Bolt Pack for S-tine Qty. 6 14 1/2" S-tine Shank 14 1/2" S-tine Shank 14 1/2" S-tine Shank
Tilmor Part Number N/A AW-3090 AW-3076 AW-3078 AW-3079
GTIN 00850002085501 00850002085525 00850002085532 00850002085549
Weight 0 lbs. 0.4 lbs. 2.3 lbs. 5.7 lbs. 14.7 lbs.
California Residents WARNING: Click here for more information on Proposition 65
Warranty Limited 1 year warranty to original owner. Click here for more information.

Documents


S-tine
Assembly
