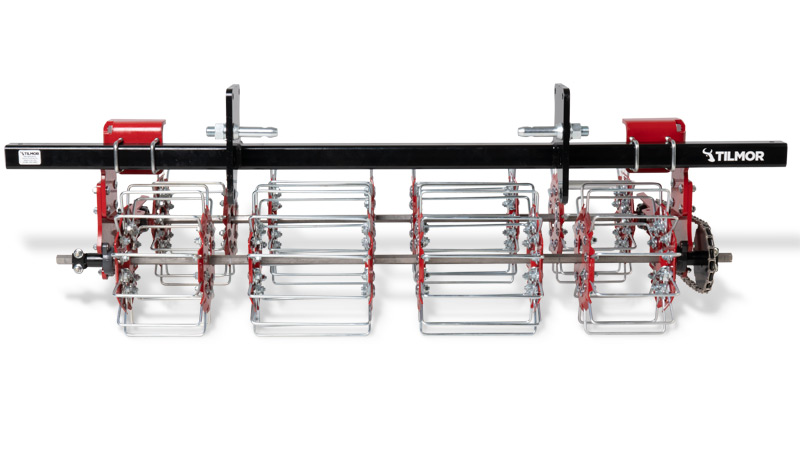

Basket Assembly for Tilmor Basket Weeder

Tilmor Basket Weeder on International 140

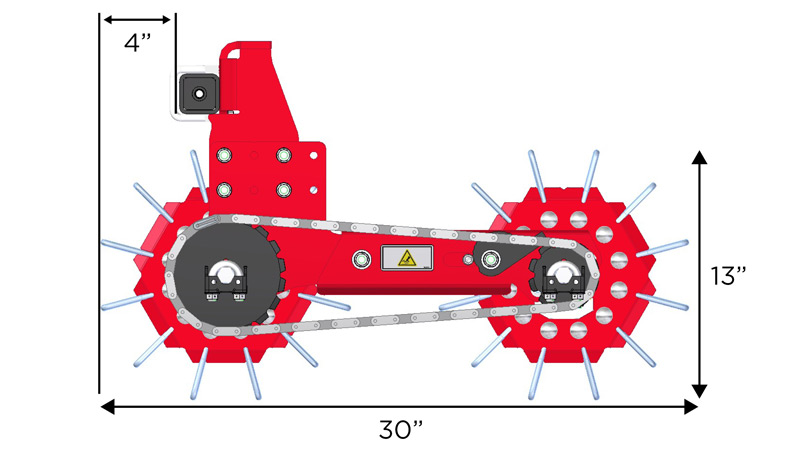

Basket Weeder Dimensions - Forward Position

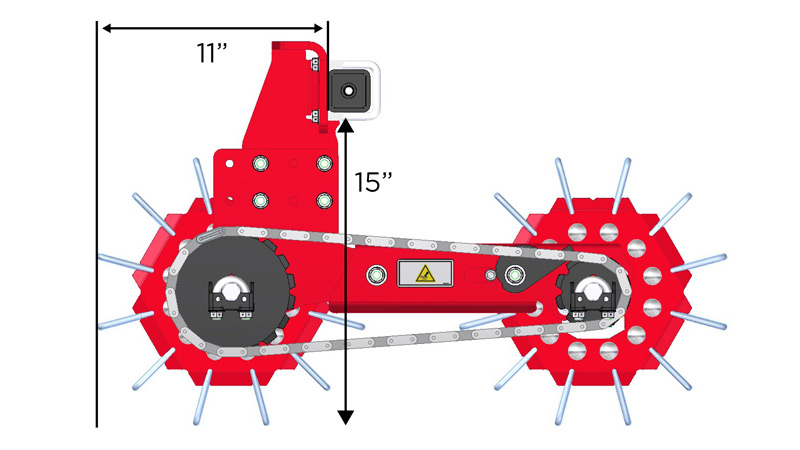

Basket Weeder Dimensions - Rear Position

Similar Products

Basket Weeder for Tilmor Power Ox or Planet Jr.

Basket Weeder for Walk Behind

$1,066.50

Basket Assemblies

$133.00 - $150.00

Basket Weeder Chain Cover

$95.00

Wire replacement for Tilmor and Buddingh Basket Weeders

Basket Weeder Wire Replacements

$48.98 - $68.28

Drive Chain and Sprocket for Basket Weeder

Kit, Basket Weeder Drive

$80.00

Basket Weeder Axle 60"

$165.00

Basket Weeder

Name: Tilmor Basket Weeder
Brand: Tilmor
Price: 1110 USD
Availability: InStock

Manufacturer Part Number:

by Tilmor Ox Logo - Gray Tilmor

Starting at $1,070.00

The Tilmor Basket Weeder is typically used for inter-row weeding. The wire baskets are spaced apart to allow for the crop row to pass between.

Basket weeders may also be used to prepare a stale seedbed by placing the baskets together and running over the entire width of a seedbed.

60" basket weeders allow for up to 53" of cultivation

80" basket weeders allow for up to 73" of cultivation

Ships via UPS in multiple boxes. Assembly Required.

Basket Weeder for Walk Behind

Frame Size

The 60 inch Basket Weeder frame is constructed of two side plates, two stainless steel hex shafts, and one set of sprockets and chain. The side plates may be adjusted infinitely along the length of the hex shafts and are typically set to match the width of the seedbed. View Narrow Assembly Instructions

The 80 inch Basket Weeder frame is constructed of two side plates, one center support plate, two stainless steel hex shafts, and a set of sprockets and chains on each end (2). The side plates may be adjusted infinitely along the length of the hex shafts and are typically set to match the width of the seedbed. View Wide Assembly Instructions

60-inch

49-0050

$530.00

80-inch

49-0052

$850.00

Mount

For mounting on a 2" square tool bar on Tilmor or category 1 tractors with top link.

For mounting on a 2" square tool bar on mid mount tractors. Tilt adjustment for tractors without top links.

No mounts included to mount the basket weeder frame to toolbar. You must provide your own method of mounting.

Cat. 1/Tilmor (60 inch)

49-4055

Included

Universal (60-inch)

49-4059

Included

None

Mount

For mounting on a 2" square tool bar on Tilmor or category 1 tractors with top link.

For mounting on a 2" square tool bar on mid mount tractors. Tilt adjustment for tractors without top links.

No mounts included to mount the basket weeder frame to toolbar. You must provide your own method of mounting.

Cat. 1/Tilmor (80 inch)

49-4056

Included

Universal (80 inch)

49-4060

Included

None

Baskets

Tilmor basket wires are made of ¼” zinc-plated spring steel in widths of 4, 5, 6, 7, 8, 9 and 10 inches. Configure the Basket Weeder to meet your specific needs or Contact Us for assistance:

Select the basket width to match the crop row width less the desired clearance (ex.: a 13 inch crop row minus 3 inches of clearance on each side of the basket requires a 7 inch basket).
Note: There must be a front and rear basket, so two 7 inch baskets should be added.

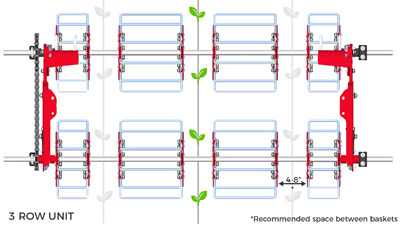

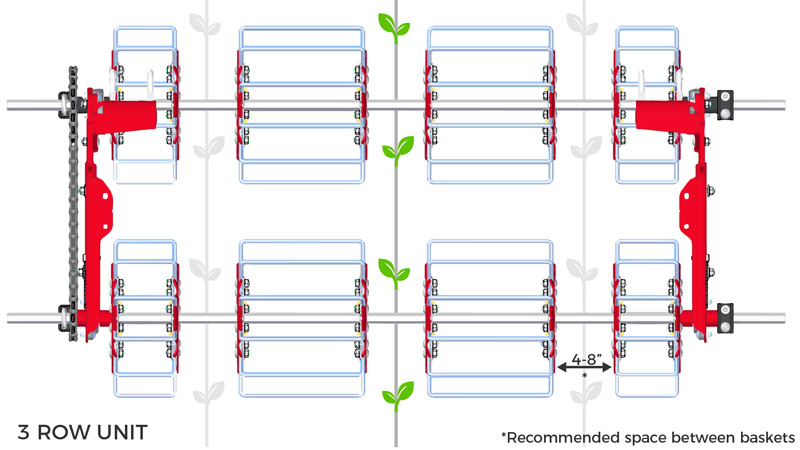

Select the number of baskets needed to work both sides of each row (ex.: number of rows + 1 = number of baskets pairs. 3 rows requires a total of 8 baskets).

Product	Price (ea)	Availability
4 inch Basket AW-9004	$133.00	In stock
5 inch Basket AW-9005	$135.00	In stock
6 inch Basket AW-9006	$137.00	In stock
7 inch Basket AW-9007	$139.00	In stock
8 inch Basket AW-9008	$141.00	In stock
9 inch Basket AW-9009	$143.00	In stock
10 inch Basket AW-9010	$145.00	In stock
12 inch Basket AW-9012	$150.00	In stock

Ships in 2-3 business days

Qty

Name	60 inch	80 inch	4 inch Basket	5 inch Basket	6 inch Basket	7 inch Basket	8 inch Basket	9 inch Basket	10 inch Basket	12 inch Basket
Tilmor Part Number	49-0050	49-0052	AW-9004	AW-9005	AW-9006	AW-9007	AW-9008	AW-9009	AW-9010	AW-9012
GTIN	00850002085051	00850002085068
Weight	55.95 lbs.	81.3 lbs.	9.85 lbs.	9.95 lbs.	10.1 lbs.	10.35 lbs.	10.5 lbs.	10.65 lbs.	10.8 lbs.	11.1 lbs.
California Residents	WARNING: Click here for more information on Proposition 65
Warranty	Limited 1 year warranty to original owner. Click here for more information.
