Sweeps - Standard

Manufacturer Part Number:

Price: $2.95 - $40.35


S-tine mounted Sweeps combined with our Toolbars, ModBars, and Cross Clamps allow for cultivation in an almost infinite amount of conditions, row spacings, crops, and growth stages.
Configure your Sweep assembly below.

Size

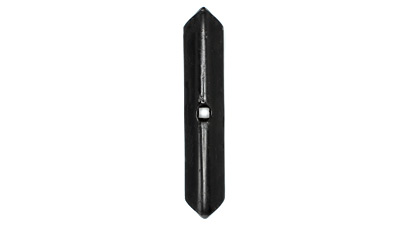

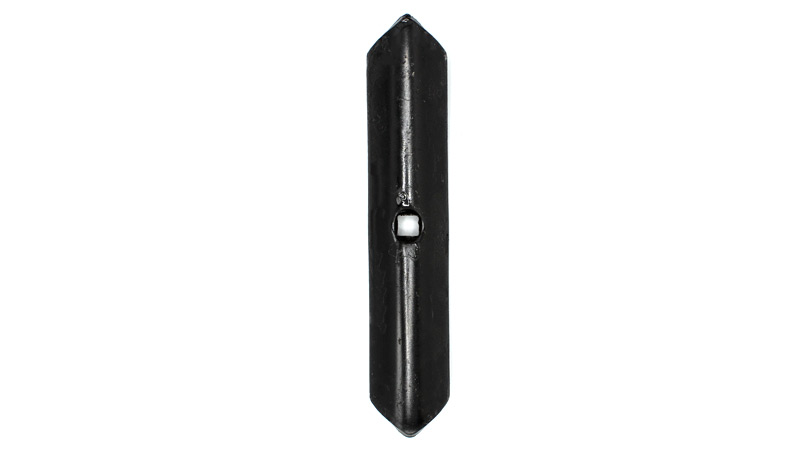

1" Reversible Point

  • Great narrow sweep to do cultivation in hard soils, shallow tillage work, and seedbed preparation.
  • Can work 2-5" deep to mix crop residue and soil amendments and it is reversible for longer life.
  • 1 Bolt 3/8" Hole

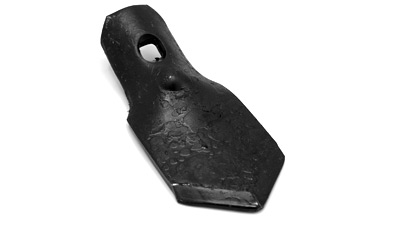

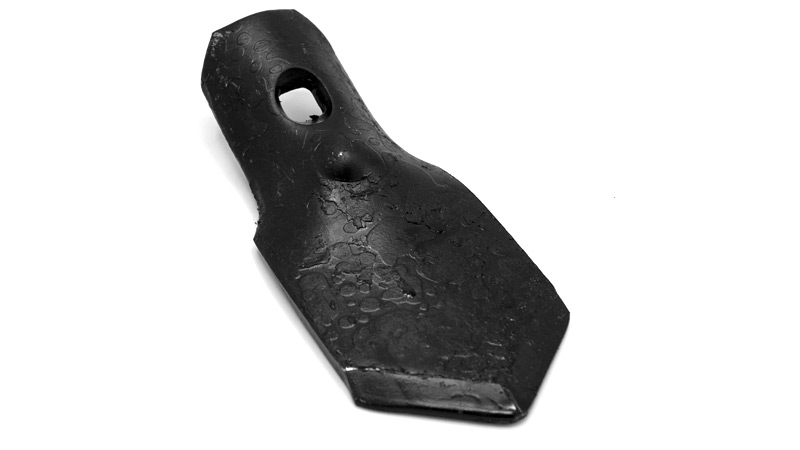

2-3/4" Sweep

  • Great sweep for mixing soil and plant residue, cultivating crops, and getting good penetration in hard dry soils.
  • Good sweep to work closer to rows to avoid root pruning and will throw a ridge of soil into the crop row.
  • 1 Bolt 3/8" Hole

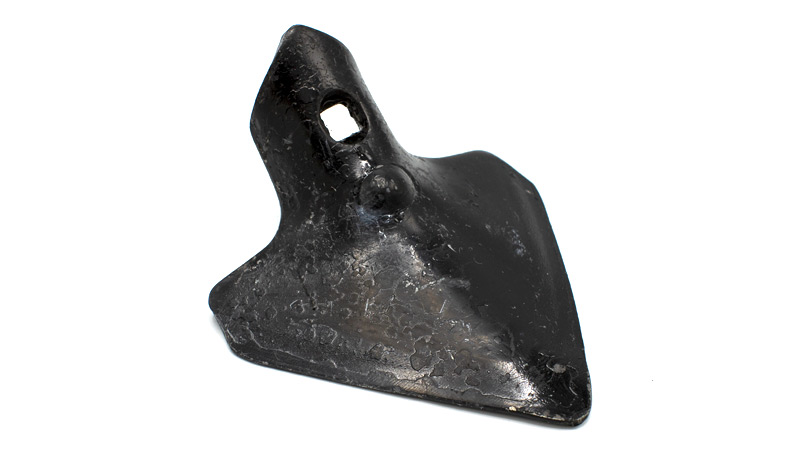

4" Sweep High Crown

  • This sweep works well in penetrating hard soils but is also 4.5" wide so you can get good overlap in a series with other sweeps.
  • Great sweep for eliminating weeds in the white thread and cotelydon stages. Larger weeds in the 2-3" stages are severed or killed by burying as well.
  • If run with nose down and at faster speeds it will give some ridging action along with burying weeds in the row.
  • 1 Bolt 3/8" Hole

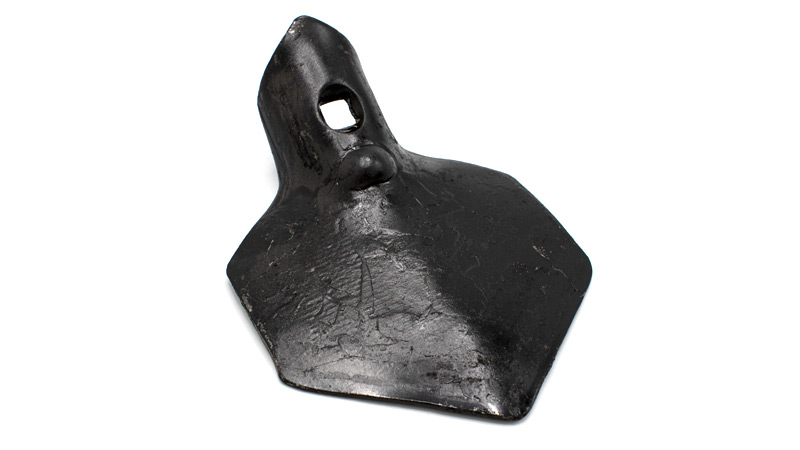

4" Duck Foot Sweep

  • Great sweep for working into hard dry soil and for slicing off the weeds at the roots.
  • These are good for running beside the row without pruning roots in older crops and also burying and killing weeds close to the row.
  • These are great to use in a series with 3 or 4 other sweeps 2-4" wide to be sure and mix and tumble the weeds in the hair thread and cotyledon stages and also kill weeds in the 2-3" stages.
  • 1 Bolt 3/8" Hole

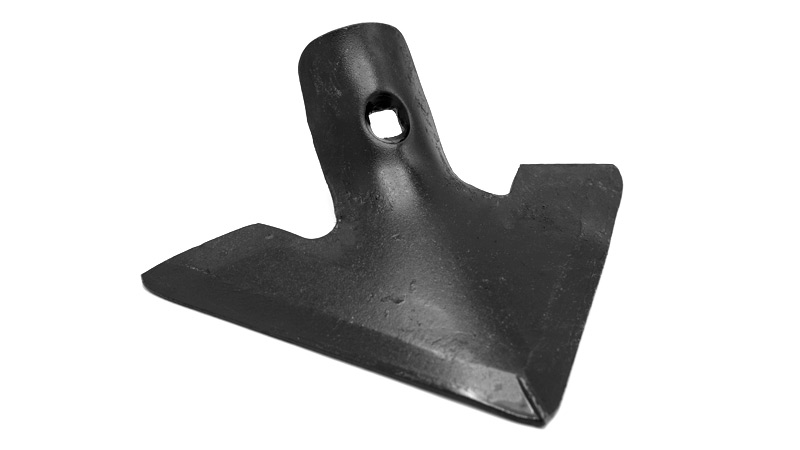

7" Sweep Low Crown

  • This sweep is great for slicing through weeds close to the soil surface and the wide 7" cut makes sure that no weeds escape.
  • The low crown tends to throw less soil and leave more residue on the surface of the soil for soil conservation purposes. The low crown also helps to prevent plugging in high residue conditions.
  • It is also a good sweep to run in combination with the wider sweeps to get the mixing and tumbling action to get good kill of the hair thread and cotyledon stage up 2-3" weeds.
  • 1 Bolt 3/8" Hole

9" High Crown Sweep

  • This is an excellent sweep for getting great penetration in hard dry soils.
  • It is also good for slicing weeds with its wide 9" cut.
  • This will also give a great mixing and tumbling of the small white thread and cotyledon stage weeds as well as killing 2-3" weeds.
  • This sweep will tend to bury more residue and leave more ridges especially when run fast with the nose down. Which is great for building ridges or hilling crops and burying weeds in the row.
  • 1 Bolt 3/8" Hole

9" High Crown Sweep

  • Cuts 1-5" deep and 10" wide
  • Can be run early or late in season depending on pitch
  • Very versatile for use with other sweeps and cultivation tools
  • 1 Bolt 3/8" Hole

S-tine Shank Size

No S-Tine shank is included to mount shovels/sweeps. If this option is selected, you must provide your own S-Tine.

14 1/2" S-tine Shank

Height - 9"
Width - 1"
Thickness - .31"

14 1/2" S-tine Shank

Height - 14-1/4"
Width - 1-1/4"
Thickness - 1/2"

14 1/2" S-tine Shank

Height - 18-1/2"
Width - 1-1/4"
Thickness - 1/2"

Clamp

No clamps are included with vegetable knives, so you must provide your own or select from the options made for Tilmor toolbars. Tilmor clamps are built for 2” square toolbars.

2" Clamp for Tine Shanks

Used to mount 9" S-tines to a 1.5" square tube.
Does NOT fit 2" Toolbars!

Clamp

No clamps are included with vegetable knives, so you must provide your own or select from the options made for Tilmor toolbars. Tilmor clamps are built for 2” square toolbars.

2" Clamp for Tine Shanks

Used to mount Flex tines and S-tines to a 2" square tube.

Clamp

No clamps are included with vegetable knives, so you must provide your own or select from the options made for Tilmor toolbars. Tilmor clamps are built for 2” square toolbars.

2" Clamp for Tine Shanks

Used to mount Flex tines and S-tines to a 2" square tube.

Mounting Hardware

No clamps are included with vegetable knives, so you must provide your own or select from the options made for Tilmor toolbars. Tilmor clamps are built for 2” square toolbars.

Bolt Pack for S-tine Qty. 6

Each bolt pack contains six (6) 3/8" x 1-1/2" Elliptical Head Bolts & Nuts.
One (1) bolt/nut is required to mount one (1) sweep to one (1) S-tine shank.

Price: $ USD

On backorder

Est. ship date: Aug 26, 2019

Ships in 1-2 business days

This product, or its configuration, is not currently in stock.

This product or its configuration is coming soon.

Call for availability

Qty

Name None 9" S-Tine Shank, S-Tine 14-1/2 Shank, S-Tine 18-1/2 1" Sweep Reversible Point 2-3/4" Sweep 4" Sweep High Crown 4" Sweep Duck Foot 7" Sweep Low Crown 9" Sweep High Crown 10" Sweep High Crown None Bolt Pack for S-Tine/Sweeps
Image 14 1/2" S-tine Shank 14 1/2" S-tine Shank 14 1/2" S-tine Shank 1" Reversible Point 2-3/4" Sweep 4" Sweep High Crown 4" Duck Foot Sweep 7" Sweep Low Crown 9" High Crown Sweep 9" High Crown Sweep Bolt Pack for S-tine Qty. 6
Tilmor Part Number N/A AW-3076 AW-3078 AW-3079 AW-3083 AW-3084 AW-3085 AW-3086 AW-3087 AW-3088 AW-3089 N/A AW-3090
GTIN 00850002085525 00850002085532 00850002085549 00850002085563 00850002085556 00850002085587 00850002085570 00850002085594 00850002085600 00850002085617 00850002085501
Weight 0 lbs. 2.3 lbs. 5.7 lbs. 14.7 lbs. 0.9 lbs. 0.8 lbs. 0.95 lbs. 1.15 lbs. 1.55 lbs. 1.7 lbs. 1.9 lbs. 0 lbs. 0.4 lbs.
California Residents WARNING: Click here for more information on Proposition 65
Warranty Limited 1 year warranty to original owner. Click here for more information.
