Side Lift Mount Kit - Adaptive Cultivator System

Manufacturer Part Number:

Tilmor Part Number:

by Thiessen Tillage Equipment

Starting at $1,590.00

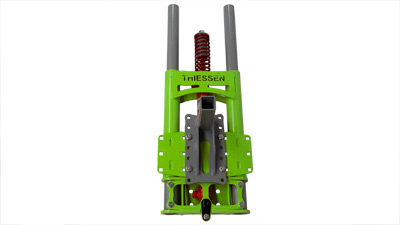

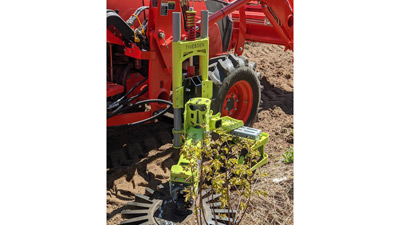

The Thiessen Side Lift is designed to mount between the front and rear wheels of a tractor to provide a side mounting and lifting location for cultivation tools such as the Adaptive Cultivation System or disc hillers. With 16 inches of vertical travel, it provides a convenient way to mount tooling in one of the best locations for control and visibility of equipment.
The side lift will require a custom mounting solution to attach it to the tractor, as well as hydraulic lines of the appropriate length and a single remote valve, but includes the lift cylinder, as well as 2-inch mount for tooling that can be located in a variety of positions.

Included in this package:

Product Price (ea) Quantity Availability
Side Mount Frame
In stock
Side Mount Tubes
In stock


On backorder

Est. ship date: Aug 9, 2022

Ships in 2-3 business days

This product, or its configuration, is not currently in stock.

This product or its configuration is coming soon.

Call for availability


Name Side Mount Frame Side Mount Tubes
Tilmor Part Number PA-9061 PA-9062
Manufacturer Part Number N/A N/A
Weight 60.9000 lbs. 39.2000 lbs.
California Residents WARNING: Click here for more information on Proposition 65
Warranty Limited 1 year warranty to original owner. Click here for more information.
