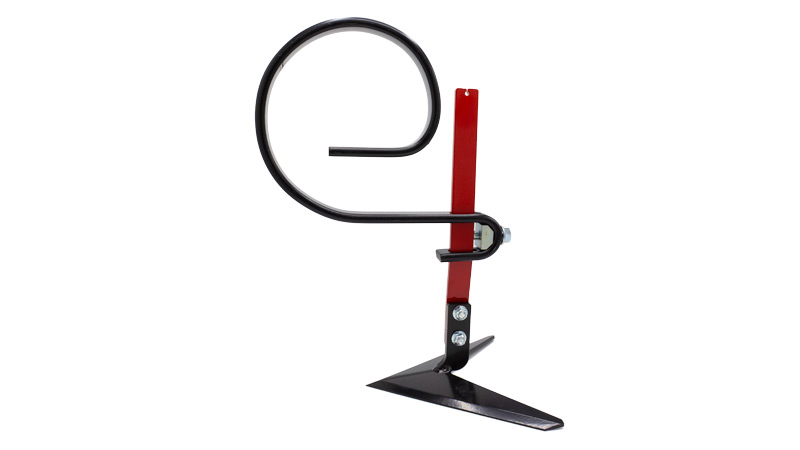

A-blade with Flex Tine
Guarantee

Similar Products

A-Blades

Manufacturer Part Number:

Price: $44.18 - $80.80


A-Blades are a low profile sweep designed for shallow cultivation. Our A-Blades have a stub with two 3/8 inch holes allowing you to mount flat and round shanks as offered below, or you can customize your own.

Size

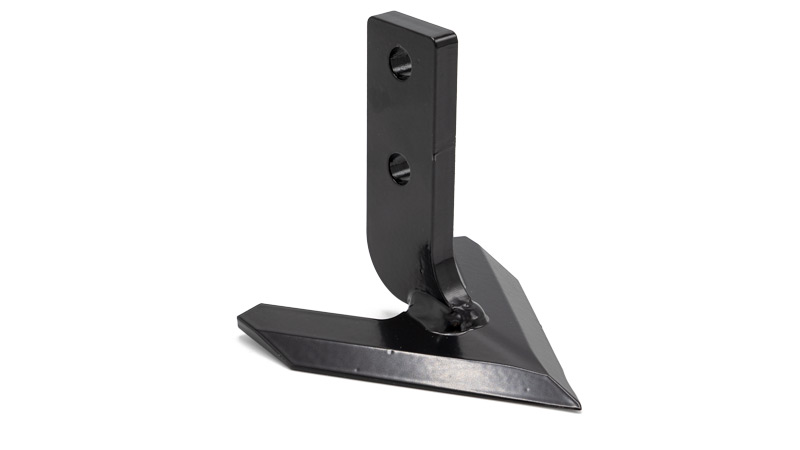

4 inch A-blade

4 inch cutting width

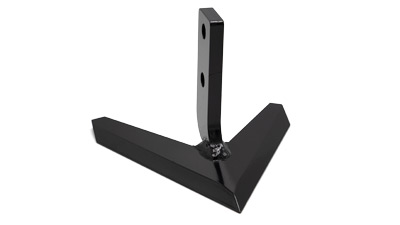

6 inch A-blade

6 inch cutting width

6 inch A-blade

8 inch cutting width

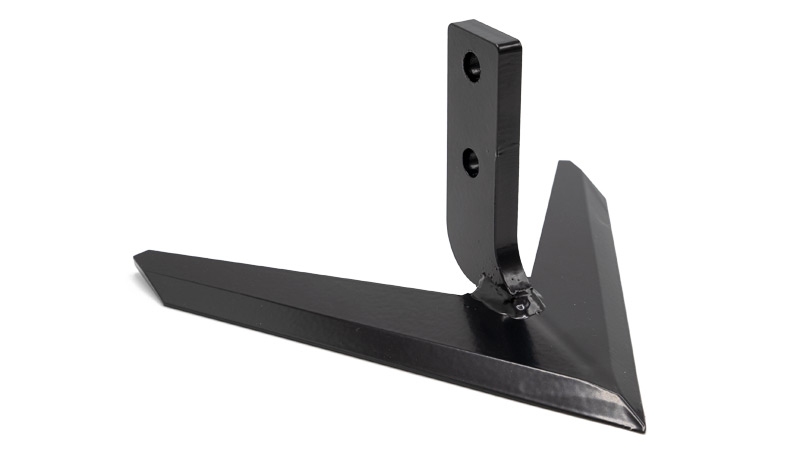

10 inch A-blade

10 inch cutting width

Shank Type

No shank is included. You must choose from the list below or provide your own.

Flat Shank - 1-3/16" x 3/8"

Mounting option for use with Finger Weeders, Vegetable Knives, and A-blades. Dimensions: 13.56" x 1.19" x .375"

Offset Flat Shank - 1-3/16" x 3/8"

Mounting option for use with Finger Weeders, Vegetable Knives, and A-blades. Dimensions: 13.56" x 1.19" x .375" with a .44" offset where the implement mounts.

Flat Shank Tool Standard - Thiessen

Mount vegetable knives or finger weeders onto toolbars.
Dimensions: 1/2" x 1-1/4" x 13-3/4"
Requires Thiessen or Planet Jr. style clamps.

Thiessen Tool Standard (7/8" Round Shank)

Combine with 7/8" round shank clamps to allow rotational movement of tooling such as vegetable knives.

7/8" Round Shank

7/8" Round Shank used for mounting cultivation and hilling tools to walk behind tractors.
No Hardware Included

Mounting Hardware

No Mounting Hardware provided. Two - 3/8" x 1 1/4" carriage bolts and two - 3/8" lock nuts required to mount one A-blade

Nut, Locking Flange 3/8-16

Mounts Flat Shank Tool Standards to Vegetable Knives, A-blades, and Finger Weeders. Includes: 4- 3/8" x 1 1/4" carriage bolt and 4- 3/8" lock nut

Price: $ USD

On backorder

Est. ship date: Sep 27, 2020

Ships in 2-3 business days

This product, or its configuration, is not currently in stock.

This product or its configuration is coming soon.

Call for availability

Qty

Name Knife, A-Blade 4" Knife, A-Blade 6" Knife, A-Blade 8" Knife, A-Blade 10" None Flat Shank Mount Offset Flat Shank Tool Standard (Flat Shank) Tool Standard (7/8" Round Shank) Round Shank - 7/8" None Hardware Pack for Flat Shanks
Image 4 inch A-blade 6 inch A-blade 6 inch A-blade 10 inch A-blade Flat Shank - 1-3/16" x 3/8" Offset Flat Shank - 1-3/16" x 3/8" Flat Shank Tool Standard - Thiessen Thiessen Tool Standard (7/8" Round Shank) 7/8" Round Shank Nut, Locking Flange 3/8-16
Tilmor Part Number AW-6088 AW-6087 AW-6077 AW-6086 N/A AW-1140 AW-1164 PA-9006 PA-9025 AW-6069 N/A 49-4072
Weight 0.8 lbs. 1 lbs. 1.25 lbs. 1.7 lbs. 0 lbs. 1.65 lbs. 1.65 lbs. 2.35 lbs. 2.25 lbs. 3 lbs. 0 lbs. 1.5 lbs.
California Residents WARNING: Click here for more information on Proposition 65
Warranty Limited 1 year warranty to original owner. Click here for more information.
