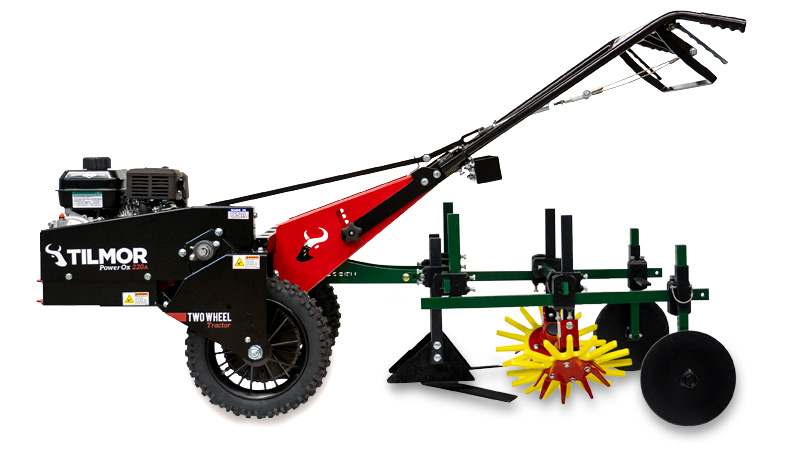

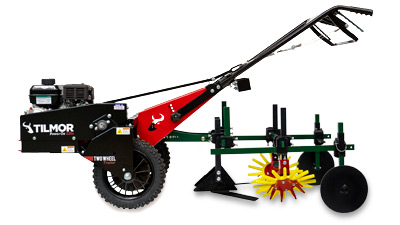

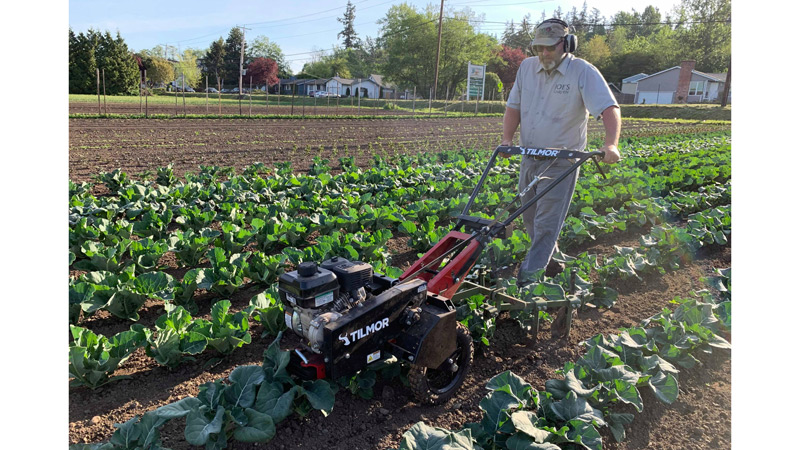

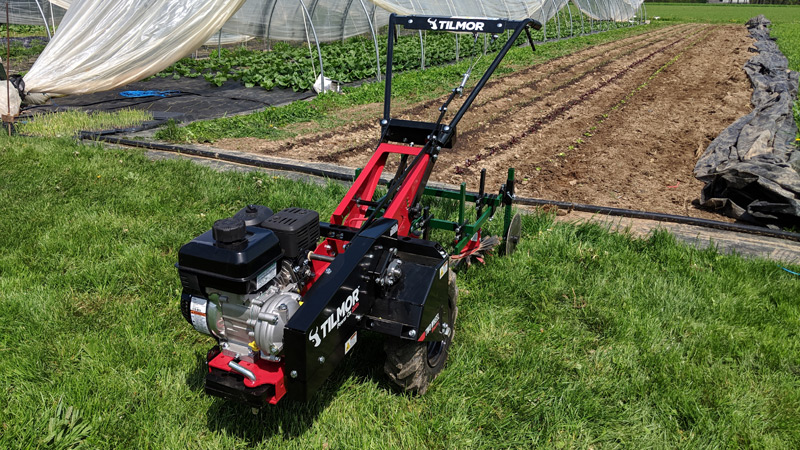

Power Ox - Two-wheel Tractor

Manufacturer Part Number: 49-0201

Tilmor Part Number: 49-0201

by Tilmor Ox Logo - Gray

Starting at $4,523.48


Conquer weeds and increase production with the all new Power Ox. Designed for planting, cultivation, and light hilling, the Power Ox is a great compliment for growers that already have primary tillage machines.

One person can switch between implements by removing a single pin with no need for tools.

Important Things to Consider:
  • Well prepared beds that are level and free of debris are critical for effective planting and cultivation.
  • Planting in straight rows and in similar number of rows as the cultivator is critical for efficient mechanical cultivation (ex.: 3-row planter allows 3-row cultivation).
  • If you have soil that is very uneven and full of debris, initial cultivation may be difficult to get tooling to fully engage.

Power Ox Chain, 415 w/80 Rollers
81-0186 $8.48
In stock
Front Frame
AU-9010 $1,362.00
In stock
Rear Frame & Handles
AU-9012 $694.00
In stock

Frame Width

Tilmor Power Ox - Narrow Frame

Designed for 15-20" center row crop cultivation.
Can be easily converted to a wide frame with AU-9006 Universal kit and appropriate mounting tubes.

Tilmor Power Ox - Wide Frame

With 36" between the wheels, you can easily straddle a 30" bed!
Can be easily converted to a narrow frame with the appropriate mounting tubes.

Wheel Type

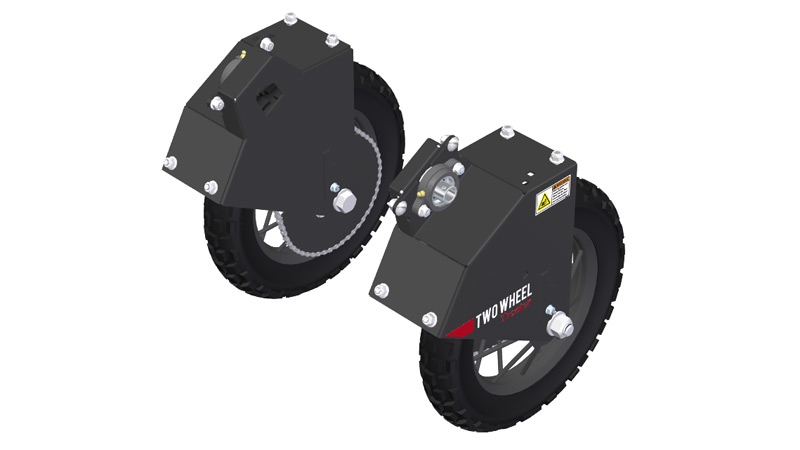

Skinny/Knobby Tire Mounts for Tilmor Power Ox

2.5" Knobby tire on a welded spoke rim designed for 15" center row crop cultivation.

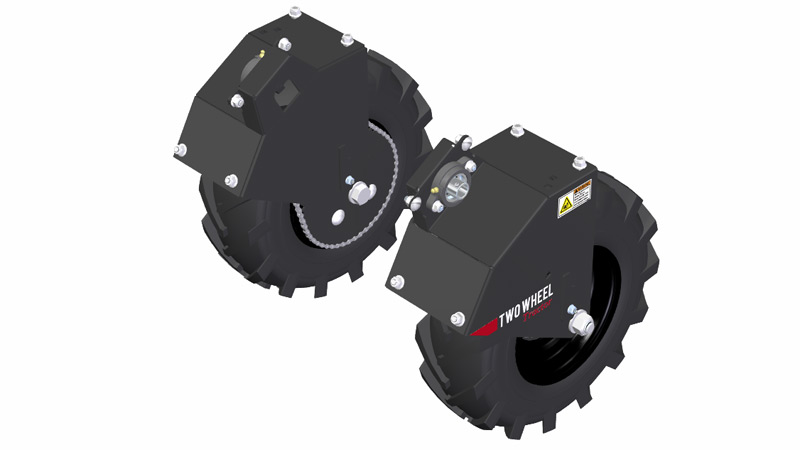

Fat/Bar Tire Wheel Mounts for Tilmor Power Ox

4" Bar/Lug tire on a solid rim designed for operators that need more flotation on 18"-20" center row crop or 30" bedtop cultivation.

Wheel Type

Skinny/Knobby Tire Mounts for Tilmor Power Ox

2.5" Knobby tire on a welded spoke rim designed for 15" center row crop cultivation.

Fat/Bar Tire Wheel Mounts for Tilmor Power Ox

4" Bar/Lug tire on a solid rim designed for operators that need more flotation on 18"-20" center row crop or 30" bedtop cultivation.


Power Ox

Power Ox Side Drawing

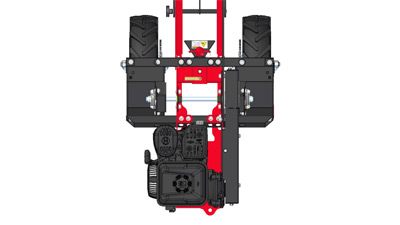

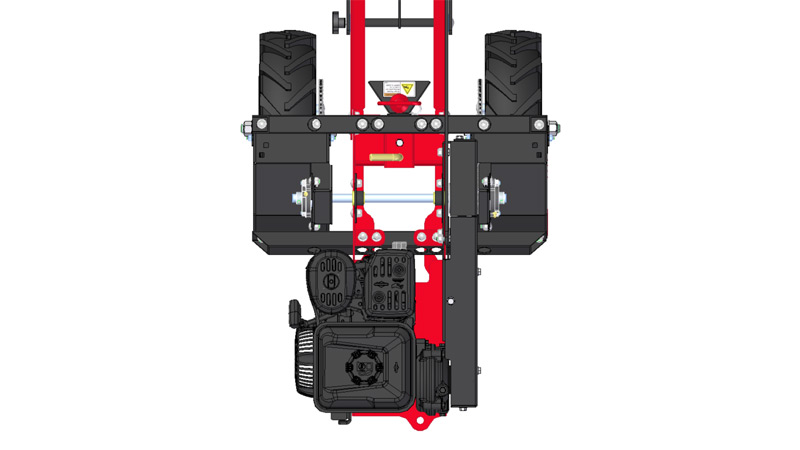

Power Ox Narrow Front Drawing

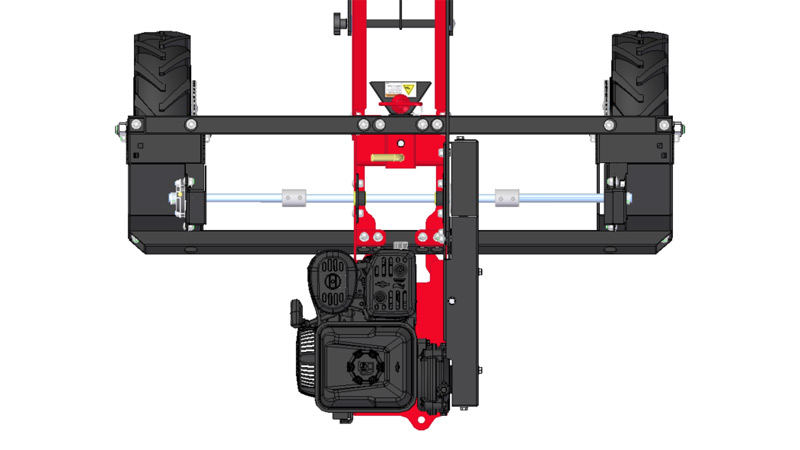

Power Ox Wide Front Drawing

Additional Features

Heavy #40 drive chain on each wheel with easy adjustment

RPM reduction accomplished with simple pulley system - No gearbox that requires maintenance

Mini-differential in drive system allows easy turning at headlands

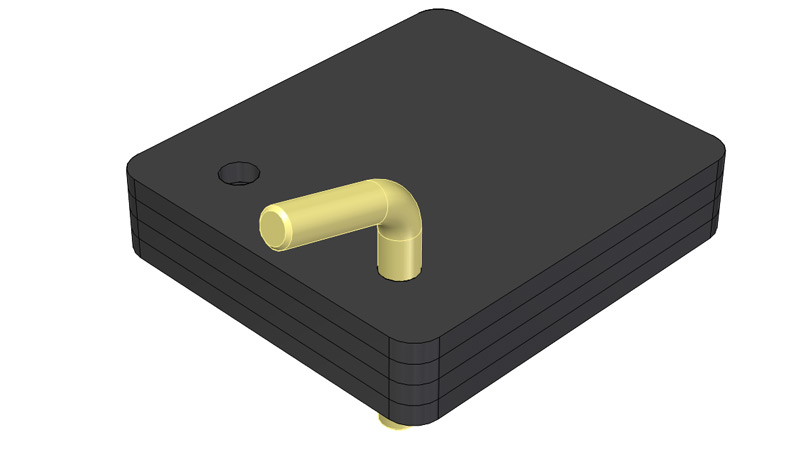

Wheel Weights: Quickly add up to 25lbs per wheel when additional traction is necessary (Optional)

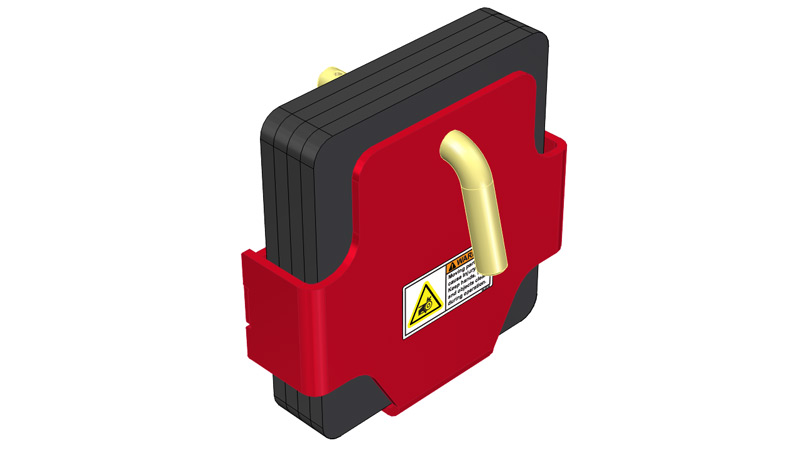

Front Weights: Quickly add up to 20lbs to the front of the machine when additional traction and counter-balance is necessary (Optional)

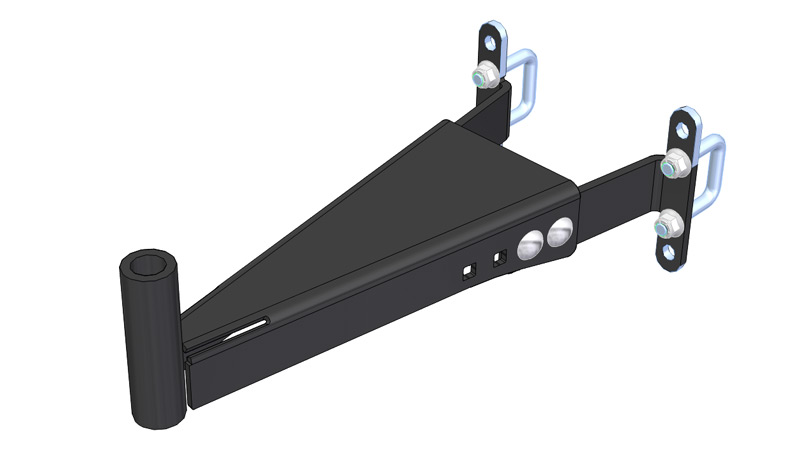

Basic Kickstand

Ease of Use

Variable ground speed from crawl to fast walk

Quick-Adjust handles for optimal operating height for any operator

Balanced for optimal maneuverability

Independent wheel rotation for ease of turning

Simple one handed operation on either side when using over a bed

13"+ of ground clearance

Quick-Change of implements with no tools

Important Things to Consider

Well prepared beds that are level and free of debris are critical for effective planting and cultivation.

Planting in straight rows and in similar number of rows as the cultivator is critical for efficient mechanical cultivation (ex.: 3-row planter allows 3-row cultivation).

Planting in straight rows and in similar number of rows as the cultivator is critical for efficient mechanical cultivation (ex.: 3-row planter allows 3-row cultivation).

If you have soil that is very uneven and full of debris, initial cultivation may be difficult to get tooling to fully engage.

*Specifications subject to change without notice

Name Narrow Wide Power Ox Chain, 415 w/80 Rollers Front Frame Rear Frame & Handles
Image Tilmor Power Ox - Narrow Frame Tilmor Power Ox - Wide Frame
Tilmor Part Number N/A N/A 81-0186 AU-9010 AU-9012
Manufacturer Part Number N/A N/A N/A N/A N/A
Weight 210 lbs. 210 lbs. 210 lbs. 210 lbs. 210 lbs.
California Residents WARNING: Click here for more information on Proposition 65
Warranty Limited 1 year warranty to original owner. Click here for more information.

Documents



Power Ox 220A
Wide Frame Drive Belt Replacement

Power Ox 220A
Narrow Frame Drive Belt Replacement

Power Ox 220A
Operator Manual

Instructions


Power Ox 220A Wide Frame Belt Replacement
These instructions are for the replacement of the Power Ox 220A wide frame configuration drive belt.

Power Ox 220A Narrow Frame Belt Replacement
These instructions are for the replacement of the Power Ox 220A narrow frame configuration drive belt.
