Jang Planter - Large Seed, Toolbar Mounted

Manufacturer Part Number: TDR-U

Tilmor Part Number: PA-9134

Starting at $1,432

The Jang TDR-U planter (AKA JDT) is designed to consistently and accurately plant medium to large sized seeds on larger areas. It uses a purely mechanical drive system without PTO or electrical connections. Multiple row units can be mounted together on 2" toolbars at the desired spacing. Use this planter to plant peas, beans, corn, squash and other seeds of similar size. Ready-made and blank/pilot drilled plates are available in several thicknesses to accommodate a wide range of seed sizes and in-row spacings.

Features:

spring-loaded parallelogram follow contours and maintain consistent downpressure
large diameter double-disc openers handle residues easily
high volume clear hopper holds ample seed and allows level check at a glance
rolling discs close furrow consistently and rear packer wheel assures good soil-to-seed contact
scrapers keep opener discs clean
on-board storage for drive gears allow quick and easy changes to in-row spacing
weight=15kg (33 lbs)

Seed Plate

6mm thick seed plate for Jang TD-series planters
Eight holes, each 14mm diameter by 6mm deep
suitable for beans and similar seeds
fits Jang TD-1, TDR-U and Large Seed Planter from Clean Seeder

6mm thick seed plate for Jang TD-series planters
Eight holes, each 8mm diameter by 6mm deep
suitable for corn and similar seeds spaced 10-25cm (4-10") in row.
fits Jang TD-1, TDR-U and Large Seed Planter from Clean Seeder

6mm thick seed plate for Jang TD-series planters
Sixteen holes, each 9.5mm diameter by 6mm deep
Suitable for peas and similar densely planted large seeds. 2-5" (5-13cm) in-row spacing
fits Jang TD-1, TDR-U and Large Seed Planter from Clean Seeder

4mm thick seed plate for Jang TD-series planters
1 small pilot hole which can be drilled out to size for your exact seed
typically used for pumpkins and squash. In-row spacings from 35-87" (90-220cm)
fits Jang TD-1, TDR-U and Large Seed Planter from Clean Seeder

5mm thick seed plate with 8 small pilot holes for Jang TD-series planters
Eight small pilot holes can be drilled out to suit your crop's exact seed size
Suitable for a wide range of seeds needing in-row spacings from 4-11" (11-27cm)
fits Jang TD-1, TDR-U and Large Seed Planter from Clean Seeder

TD Plates 9/16" (14mm)

Add CA$50

PA-9135

TD Plates 5/16" (8mm)

Add CA$50

PA-9136

TD Plates 3/8" (9.5mm)

Add CA$50

PA-9137

Planter, 4mm Seed Plate w/ 1 Pilot Hole

Add CA$50

PA-9181

Planter, 5mm Seed Plate w/ 8 Pilot Holes

Add CA$50

PA-9182

None

Price:

In Stock

Qty

Information
Specifications

Thiessen Tillage is your best source for Jang seeders and planters in Canada

Unbeatable pricing, importing direct from Korea without US-tarifs or additional markup

Full line stocking dealer with extensive inventory in Canada and rapid order fulfilment

Full selection of genuine Jang plates, parts and accessories, in stock in Canada!

Experienced sales and support staff with years of experience configuring and operating Jang equipment

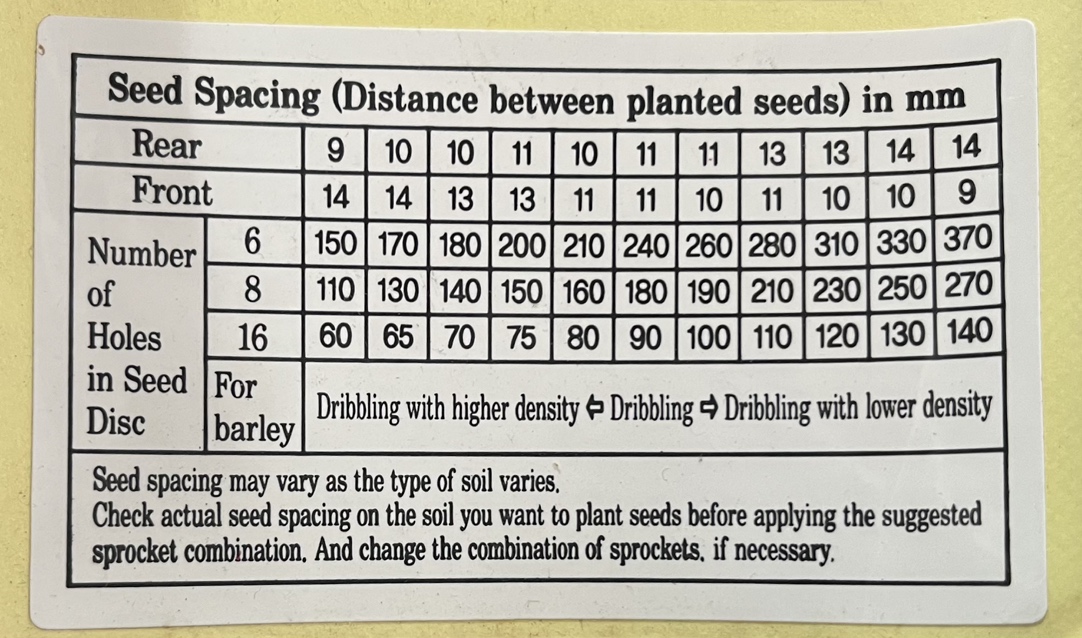

Seed spacing adjustment chart for Jang TD/JD-series planters (metric)

Metric spacing chart for Jang JD/TD series planters

Name	Jang Planter - Large Seed, Toolbar Mounted	TD Seed Plate 6mm x 8 large holes (beans)	TD Seed Plate 6mm x 8 med holes (corn and similar)	TD Seed Plate 6mm x 16 med holes (peas and similar)	Planter, A-2 seed plate	Planter, C-2 seed plate	Planter, A-1 seed plate	Planter, C-1 seed plate	Planter, B-1 seed plate	Planter, W-1 seed plate	Planter, B-2 seed plate	Planter, S-2 seed plate	Planter, B-3 seed plate	Planter, W-2 seed plate	TD Seed Plate 4mm x 1 pilot hole (squash & pumpkin)	TD Seed Plate 5mm x 8 pilot holes (drill to suit crop)
Tilmor Part Number	PA-9134	PA-9135	PA-9136	PA-9137	PA-9103	PA-9104	PA-9105	PA-9106	PA-9107	PA-9108	PA-9109	PA-9110	PA-9111	PA-9112	PA-9181	PA-9182
Manufacturer Part Number	TDR-U	JA-TD-6T8P	JA-TD-A2	JA-TD-6T16L	E42A-2	E42C-2	E42A-1	E42C-1	E42B-1	E42W-1	E42-B2	E42S-2	E42B-3	E42W-2	JA-TD-4T1B	JA-TD-5T8B
Country of Origin		South Korea	South Korea	South Korea											South Korea	South Korea
Weight	44.0000 lbs.	0.4000 lbs.	0.4000 lbs.	0.4000 lbs.	0.2000 lbs.	0.2000 lbs.	0.2000 lbs.	0.2000 lbs.	0.2000 lbs.	0.2000 lbs.	0.2000 lbs.	0.2000 lbs.	0.2000 lbs.	0.2000 lbs.	0.2000 lbs.	0.2000 lbs.
