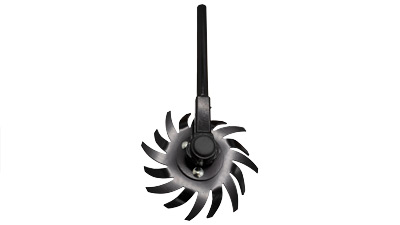

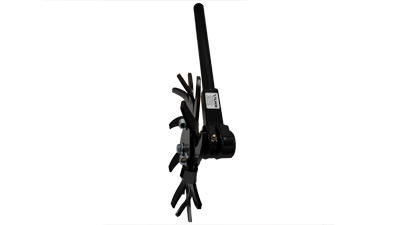

Tilmor Spyder Wheel Assembly

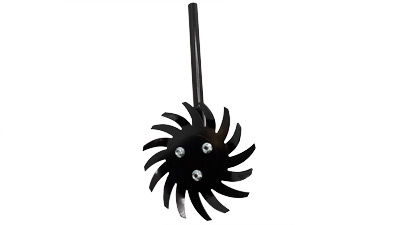

Tilmor Spyder Wheel Assembly
Tilmor Spyder Wheel Assembly

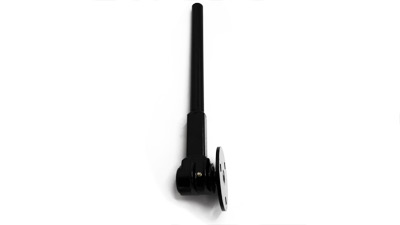

Tilmor Spyder Wheel Hub Assembly

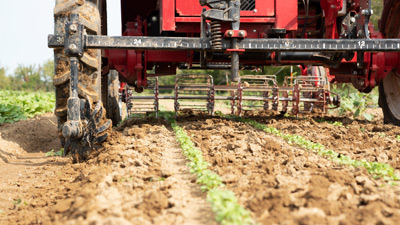

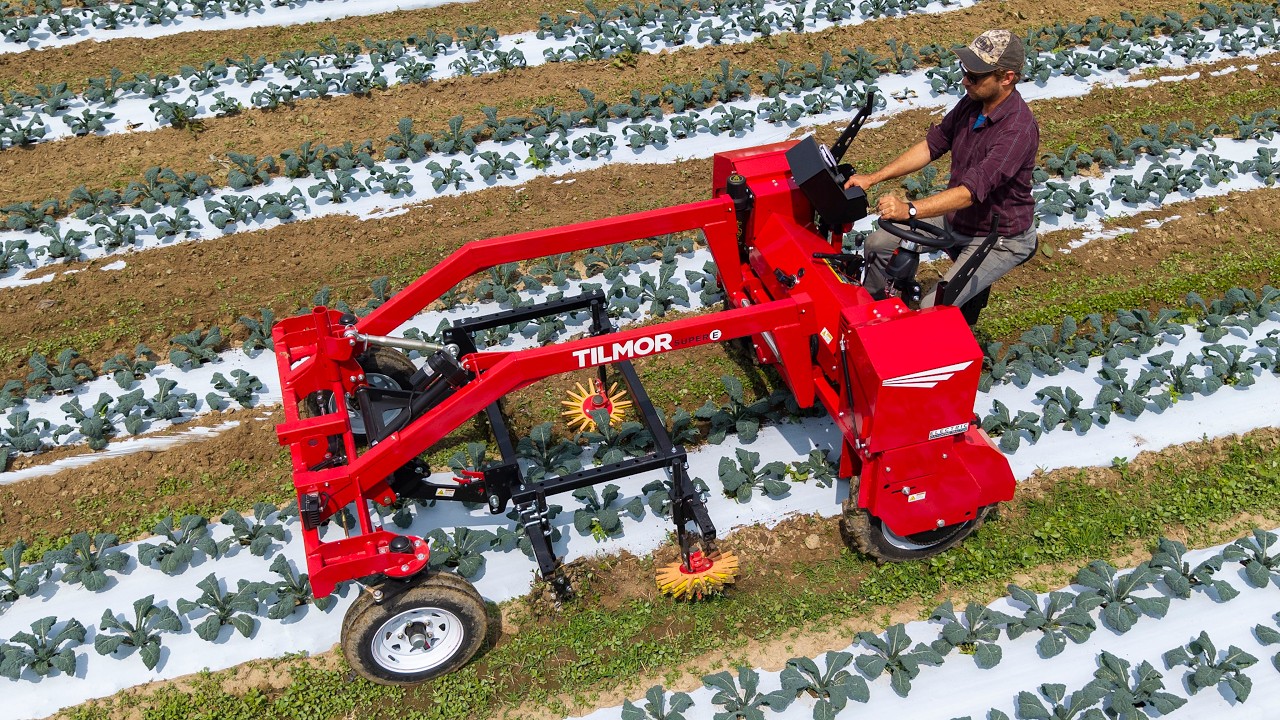

Edge of Plastic Cultivation with Finger Weeder and Spyder
Guarantee

Similar Products

Tilmor Spyder Wheel Left
Spyder Replacements

$55.00 - $110.00

13" Finger Weeder with Medium Fingers and Flat Shank
Finger Weeders (2019)

$153.00 - $190.00

Tilmor Basket Weeder
Basket Weeder

Starting at $1,055.00

Aerostar 150 Tine Weeder - Einbock
Einbock Tine Weeder

$2,925.00 - $3,950.00

Torsion Weeder Tine - 22" Right - .312" Dia
Torsion Weeder

$24.00 - $138.00

14 1/2" S-tine Shank
S-Tines

$6.95 - $22.90

Spyders

Manufacturer Part Number:

Price: $135.00 - $510.00


Direct replacement Spyder wheels and assemblies for Bezzerides cultivators.
  • Replaces disc hillers
  • Mulches and aerates soil
  • Leaves no "smooth shoulder" next to plants
  • Conserves moisture
  • Made of 1/4 inch long wearing, special steel

Hub Assembly

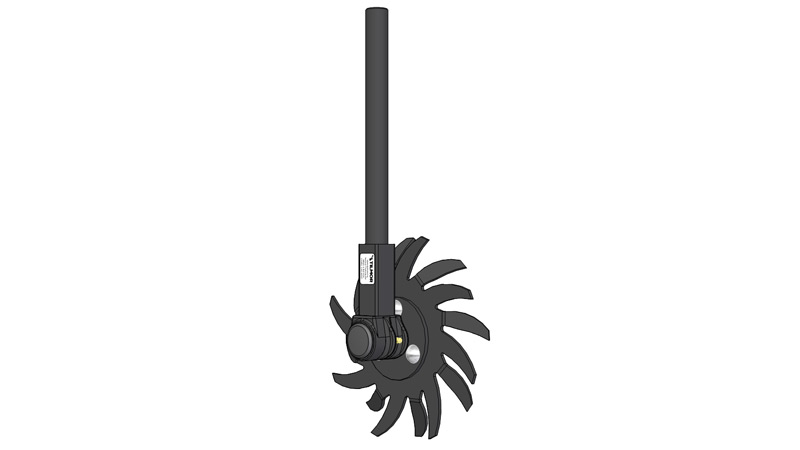

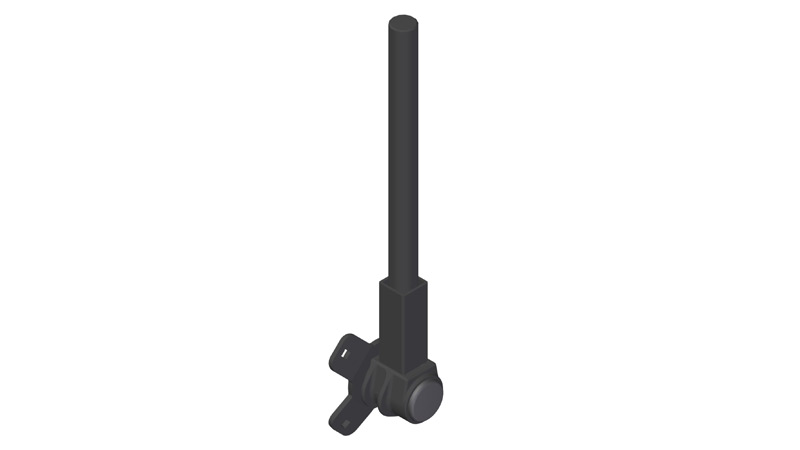

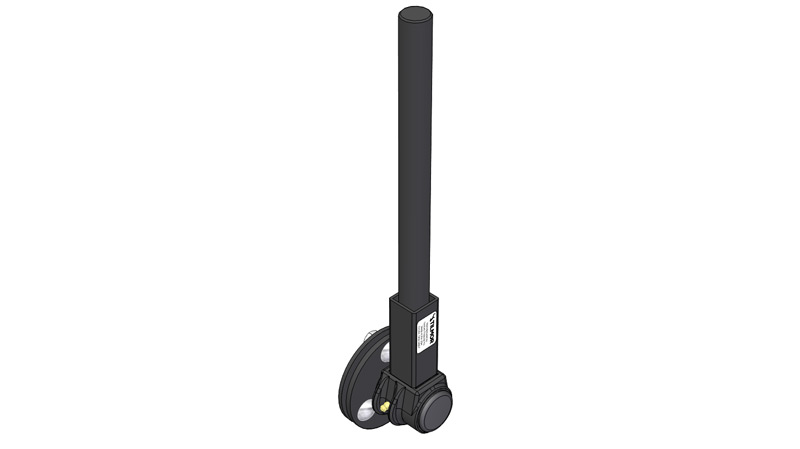

Tilmor Spyder Wheel Hub Assembly

A single hub assembly for one spyder wheel.

Tilmor Spyder Wheel Hub Assembly - Pair

A pair of hub assemblies for two spyder wheels.

Spyder Wheels

No Spyder Wheels are included.

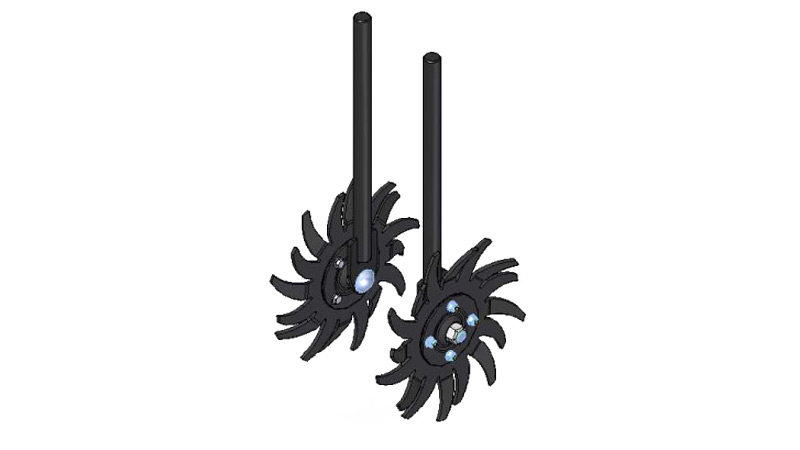

Tilmor Spyder Wheel - Pair

12" Spyder Wheel - Right/Left Pair

Clamp

Toolbar clamps are not included. You must provide your own or select from the options made for Tilmor toolbars. Tilmor mounting brackets are built for 2” square toolbars.

Clamp for Round Shanks and Vegetable Knives

Fabricated plate with U-bolts that hold up to an 1-1/4" round shank and designed to mount on a 2" square tool bar.

Clamp for 1-1/4" Round Shanks

Easy adjustment of tools and spacing for growers needing to adapt to various crops and conditions. Holds up to an 1-1/4" round shank and designed to mount on a 2" square tool bar.

Spyder Wheels

No Spyder Wheels are included.

Tilmor Spyder Wheel Left

Left side replacement wheel for Bezzerides Spyder cultivators.
Length: 12"
Width: 12"
Height: 1.5"

Bezzerides Spyder Right Hand Replacement

Right side replacement wheel for Bezzerides Spyder cultivators.
Length: 12"
Width: 12"
Height: 1.5"

Clamp

Toolbar clamps are not included. You must provide your own or select from the options made for Tilmor toolbars. Tilmor mounting brackets are built for 2” square toolbars.

Clamp for Round Shanks and Vegetable Knives

Fabricated plate with U-bolts that hold up to an 1-1/4" round shank and designed to mount on a 2" square tool bar.

Clamp for 1-1/4" Round Shanks

Easy adjustment of tools and spacing for growers needing to adapt to various crops and conditions. Holds up to an 1-1/4" round shank and designed to mount on a 2" square tool bar.

Price: $ USD

On backorder

Estimated ship date: Mar 26, 2019

Ships in 1-2 business days

This product, or its configuration, is out of stock.

This product or its configuration is coming soon.

Call for availability

Qty

About the Spyder
The Spyder has been an important cultivation tool for growers since it was designed, manufactured and sold by the Bezzerides Brothers Inc. located in Orosi, California.
Because the Bezzerides Brothers no longer produce the Spyder, Tilmor has received permission to manufacture and sell this important tool once again.
  • Bezzerides Spyder blade left part number is 3050
  • Bezzerides Spyder blade right part number is 3060

Features:
  • Run at slow speeds to pull soil and weeds away from the row and fracture close to the row in small crops.
  • Run at slow speeds or higher speeds straight to fracture close to the row and act as rolling shield to guard young crops.
  • Great option to use when pulled behind horse drawn equipment for hilling as they will work at slower speeds unlike a sweep that must be run faster.
  • In more mature crops they can be angled in to throw soil into the row and fracture soil in the row to bury larger weeds and cover the base of larger crops to stimulate new root growth and a deeper aerobic zone in your fields.
  • At any stage they can be run in tandem with sweeps, hoes, or points to fracture and tumble the soil and create a beautiful non-slabbed soil structure behind your cultivator pass.
  • The unique design allows for operation in heavier soil without slabbing and/or crusting that results from a hilling disk or other more conventional tools.
  • Excellent tools to pair with finger weeders in heavier soil to fracture ahead of the fingers then the fingers can flick weeds out of the soil in the row.
  • Good to pair with torsion weeders to get right into the row when weeding young crops.
  • Rebuild and weed bed shoulders when run at a high speed and angled in.
Operating Instructions:

Install Spyders on each side of the plant row with teeth toward the plants and pointing downward at the rear. When the curved teeth point "up" at the rear, their action is more severe. They should operate approximately at a forty five degree angle to the row at desired depth.

Name Spyder Mount - Single Spyder Mount - Pair
Image Tilmor Spyder Wheel Hub Assembly Tilmor Spyder Wheel Hub Assembly - Pair
Tilmor Part Number AW-9043 49.0121
Weight 13.55 lbs. 27 lbs.
California Residents WARNING: Click here for more information on Proposition 65
Warranty Limited 1 year warranty to original owner. Click here for more information.
